Portable Total Suspended Solids ( TSS)

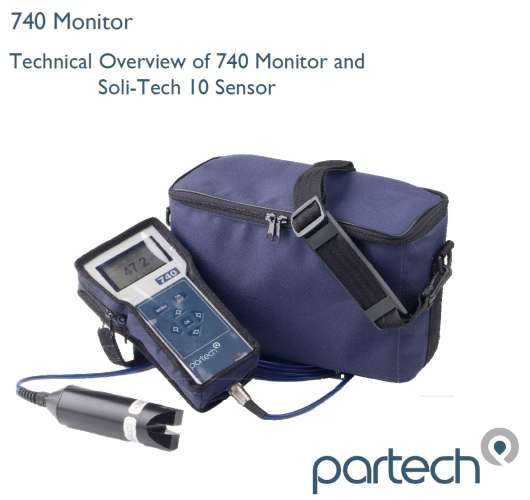

Partech 740 Monitor

Technical Overview of 740 Monitor and
Soli-Tech 10 Sensor

Target Applications
• The 740/ ST10 has two major applications
– Mixed Liquor Suspended Solids
• Typical range 0-5000 mg/ l
– Final Effluent Suspended Solids
• Typcial range 0-100 mg/ l
• The 740 can be programmed for both of these
applications in a single monitor

Main Features
• Wide application range
– from 0-50 to 0-20, 000 mg/ l
• User selectable units
– Can measure in FTU, NTU, mg/ l g/ l, ppm, % SS or
your own defined units
• Multiple site setups
– Uses preset profiles to suit application
– Upto 10 different setups on one system

Available Presets

Milk 0-10 % Product Wasteage on Dairy Plant
Fulle’ s Earth 0-20 mg/ l
Fuller’ s Earth 0-10 mg/ l
Fuller’ s Earth 0-1000 mg/ l
Fuller’ s Earth 0-100 mg/ l
Formazin 0-4000 FTU
Formazin 0-1000 FTU
Formazin 0-100 FTU Final Effluent Monitoring
STW – NAS 0-10000 mg/ l Activated Sludge – MLSS or RAS
STW – NAS 0-1000 mg/ l
STW – Final Effluent 0-100 mg/ l Final Effluent Monitoring

* NAS = Normal Activated Sludge, based on typical solids present on a sewage
treamtent plant Masukan ke Produk RekananKenalkan ke teman Anda
